Bentley BR-2 Rotary Engine Plans



Because occasionally someone will ask:

The engine is totally unsuitable for a hang glider !

RETURN to HOW to ORDER



Cost of shipping the Plans in the USA  - $ 20 USD

Cost of shipping the Plans OVERSEAS & CANADA - $ 55 USD

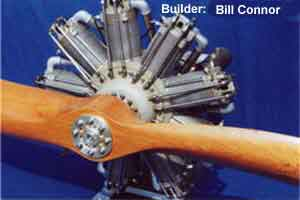

The BR-2 Bentley Rotary

  BR-2 Bentley Rotary
Displacement 50.15 cu. in.
Diameter 16.5 in.
Cost of Plans $135 + Shipping USD
There is no casting necessary, all parts are made from bar stock

Two plugs per cylinder,  Constant loss pressurized oil system

The plans include a lot more than drawings !

      Also included are :

  •      Drawings for tools and fixtures

  •      Purchased gear list

  •      Recommended suppliers for material and auxiliary parts

  •      A parts list with recommended materials

  •      X-Y coordinate hole drilling schedules

  •      Detail assembly drawings

  •      Machining operation sheets for more difficult parts

  •      Ignition drawing

  •      Assembly and timing instructions.

  •      Mounting stand and cooling club drawings

  •      A color photo of the finished engine



For more information write, email, or call in the evenings:

Lee Hodgson
7895 Mitchell Farm
Cincinnati, Ohio 45242
USA

E-mail ageless@infionline.net
US Area Code: ( 513 ) 791-3098

( EST or GMT less 5 hours )
